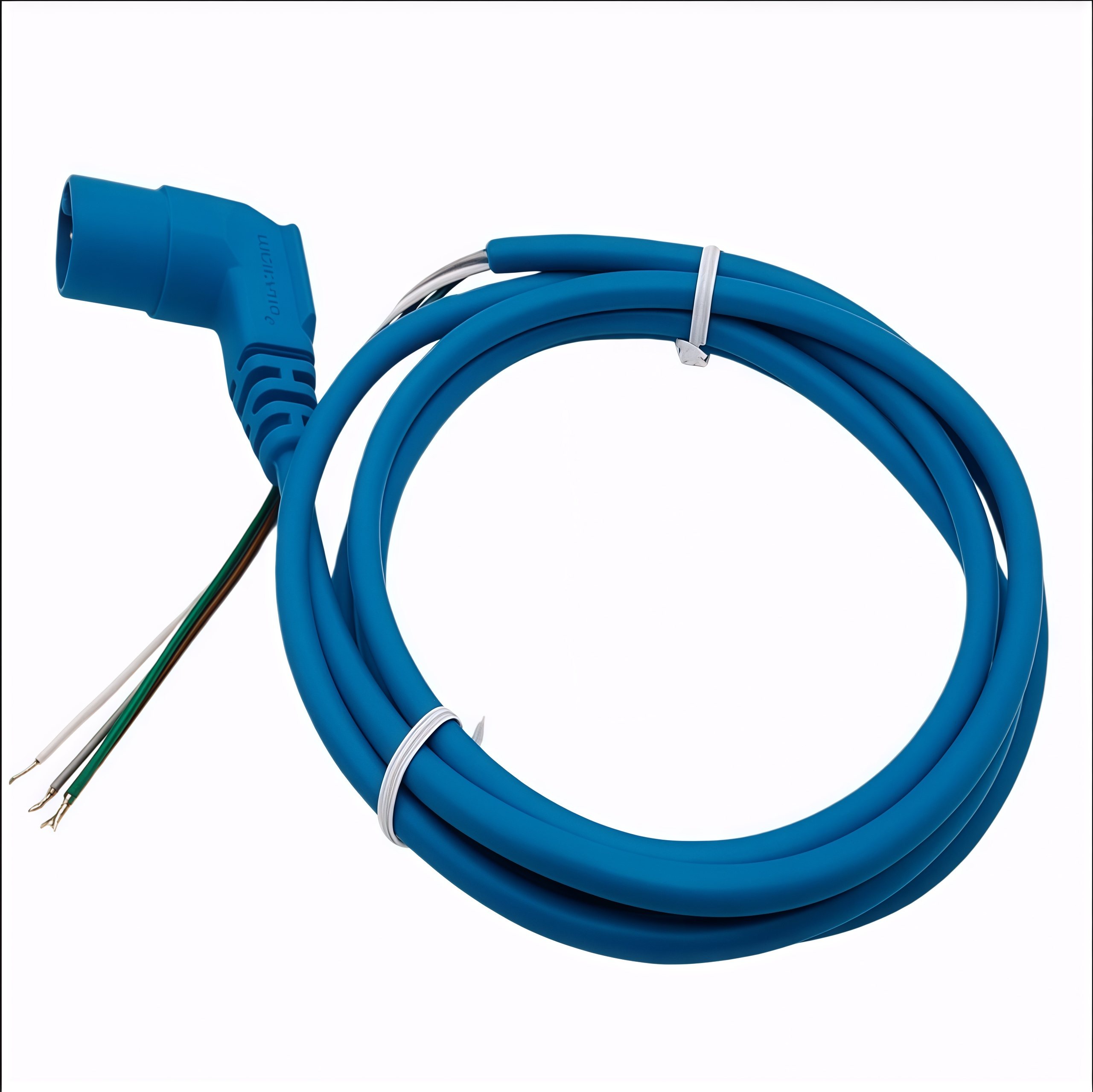

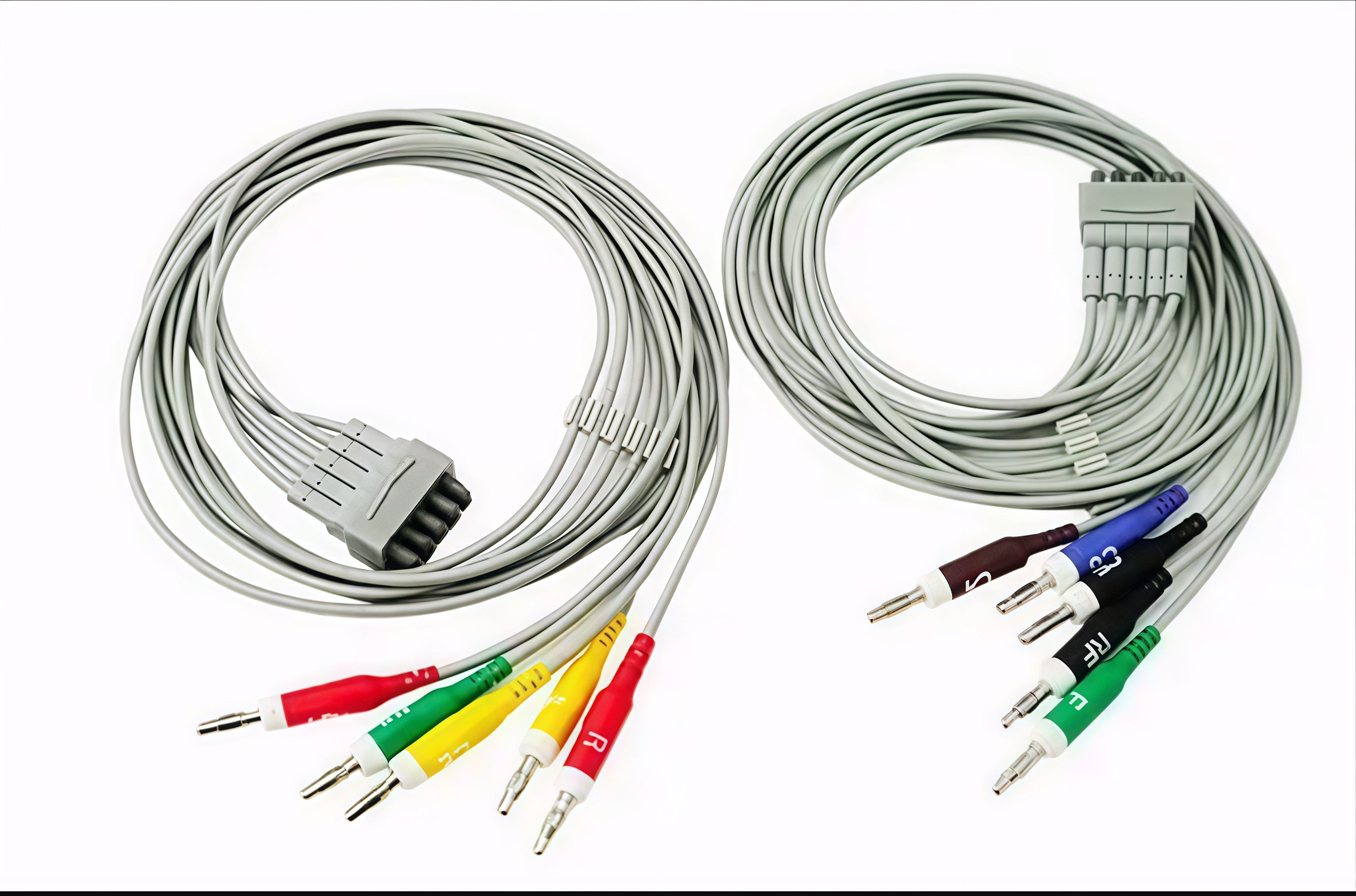

Medical Equipment Wire Harness
Our medical device wire harnesses meet the stringent requirements of healthcare equipment manufacturers. Constructed with biocompatible materials and designed for repeated sterilization, they provide reliable performance in critical medical applications where patient safety is paramount.
Key Features
- Biocompatible materials (USP Class VI)
- Sterilization compatible (autoclave, EtO, gamma)
- Low noise signal transmission
- High flexibility for handheld devices
- Chemical and fluid resistant
- ISO 13485 certified manufacturing
Specifications
| Conductor Material | Tinned copper, silver-plated optional |
| Insulation | FEP, PTFE, silicone, biocompatible PVC |
| Voltage Rating | Up to 600V |
| Temperature Range | -60°C to +200°C (silicone) |
| Sterilization | Autoclave, EtO, gamma radiation |
| Biocompatibility | USP Class VI, ISO 10993 |
| Jacket | Medical grade PVC, silicone, PUR |
| Certifications | ISO 13485, UL, CE, RoHS |
Applications
Diagnostic imaging equipment (X-ray, CT, MRI)
Patient monitoring systems
Surgical instruments and robots
Laboratory analyzers
Ultrasound and therapeutic devices
Dental and ophthalmic equipment
Why Choose Our Medical Harnesses
Meets medical regulatory requirements
Withstands repeated sterilization cycles
Superior signal integrity for diagnostics
Cleanroom manufactured available
