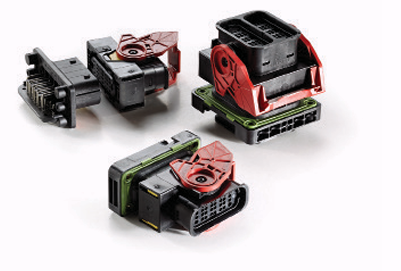

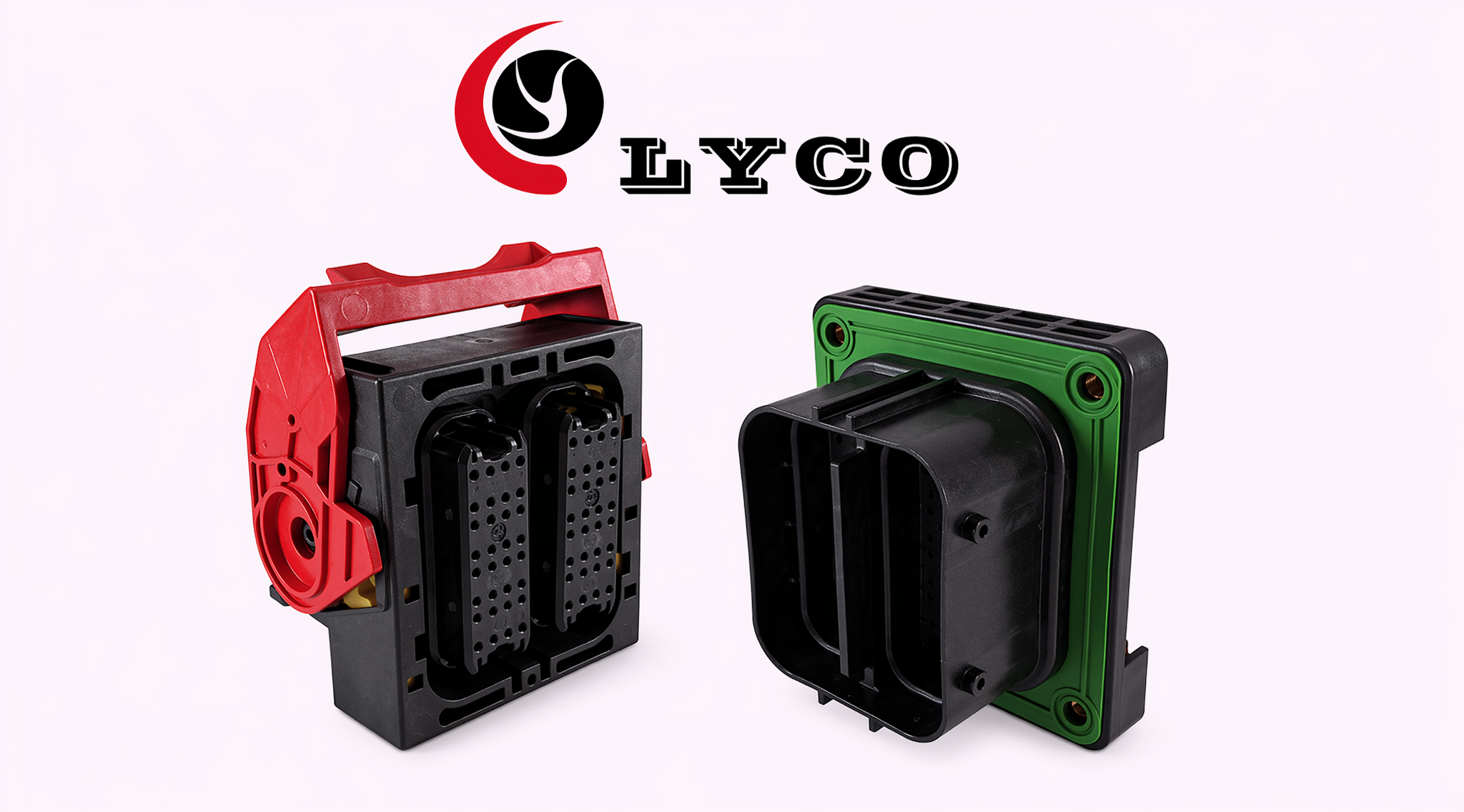

STRIKE Series Connector
Our STRIKE Series connectors feature innovative modular design with quick-disconnect capability, enabling rapid field maintenance and reconfiguration. These versatile connectors reduce downtime and simplify servicing in applications requiring frequent disconnection or module swaps.
Key Features
- Quick-disconnect modular design
- Field serviceable without special tools
- Configurable contact arrangements
- Secure locking mechanism
- Environmental sealing IP67
- Operating temperature: -55°C to +125°C
Specifications
| Positions | Modular configurations |
| Current Rating | Up to 25A per contact |
| Voltage Rating | Up to 600V |
| Temperature Range | -55°C to +125°C |
| Environmental Rating | IP67 |
| Contact Material | Copper alloy with gold plating |
| Housing Material | Thermoset, aluminum alloy |
| Wire Size | 12-22 AWG |
Applications
Military ground vehicles
Emergency response equipment
Broadcast and AV systems
Test and measurement setups
Temporary installations
Modular industrial systems
Why Choose Our STRIKE Series
Reduced maintenance downtime
Easy field reconfiguration
No special tools required
Reliable quick-connect performance
