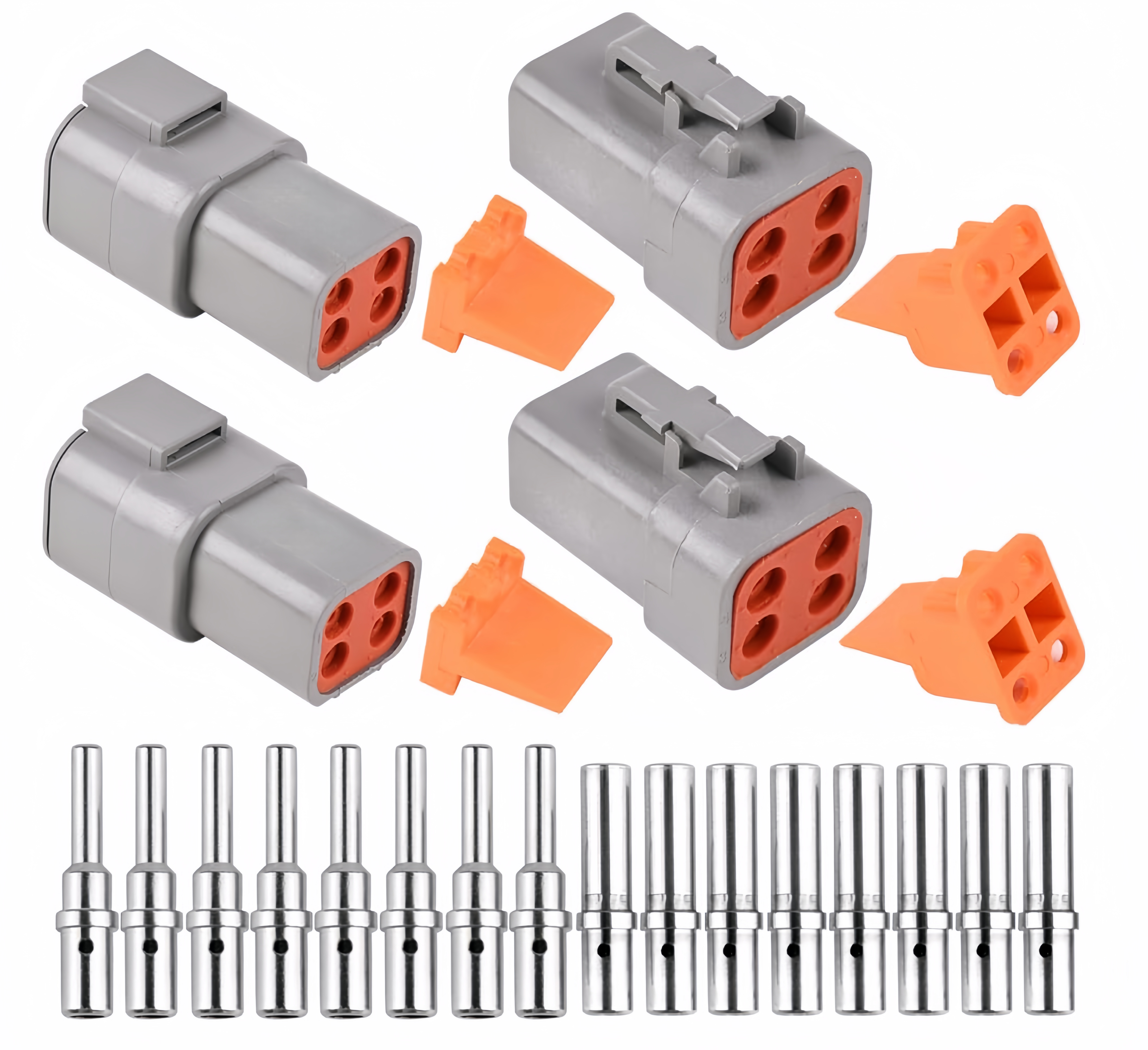

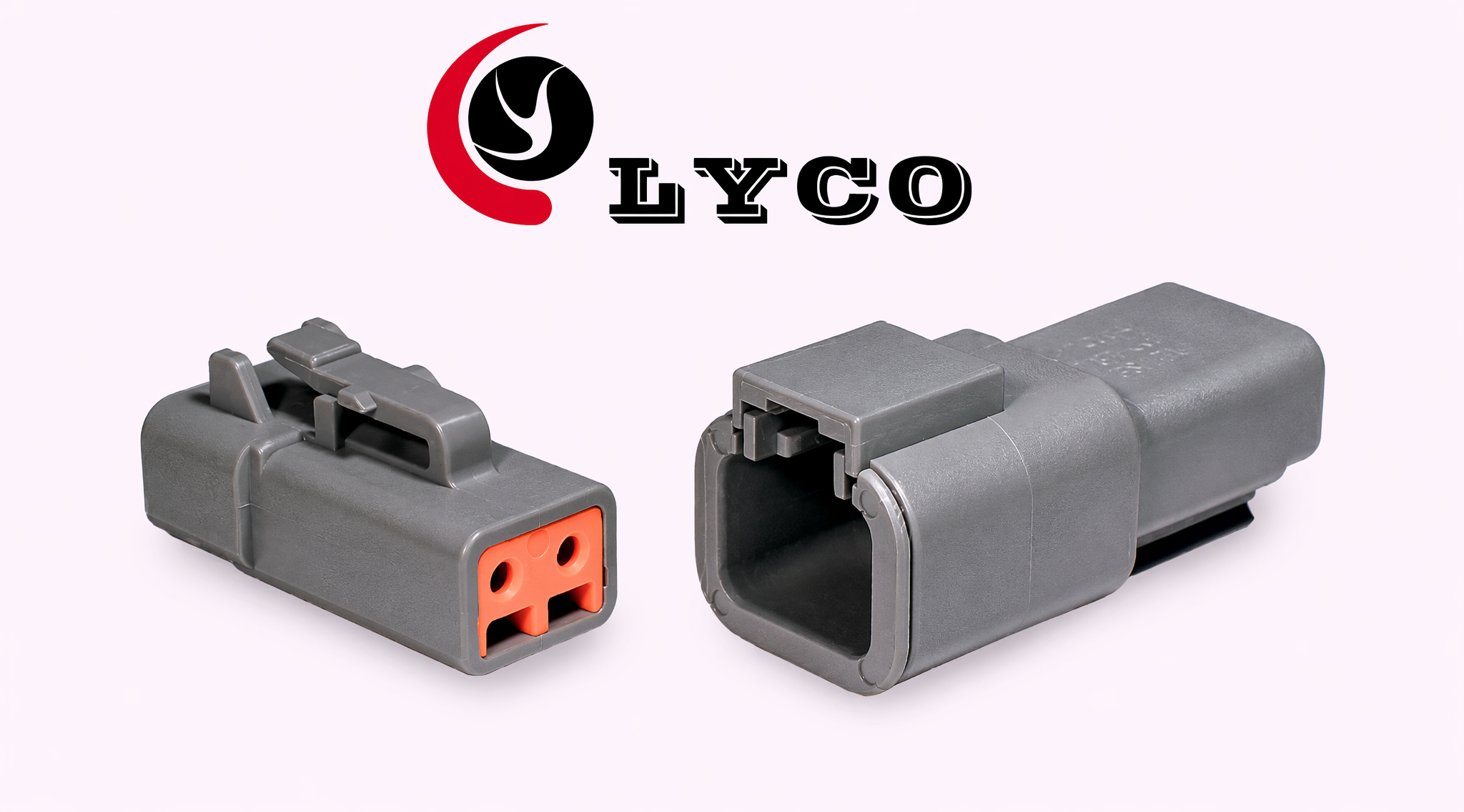

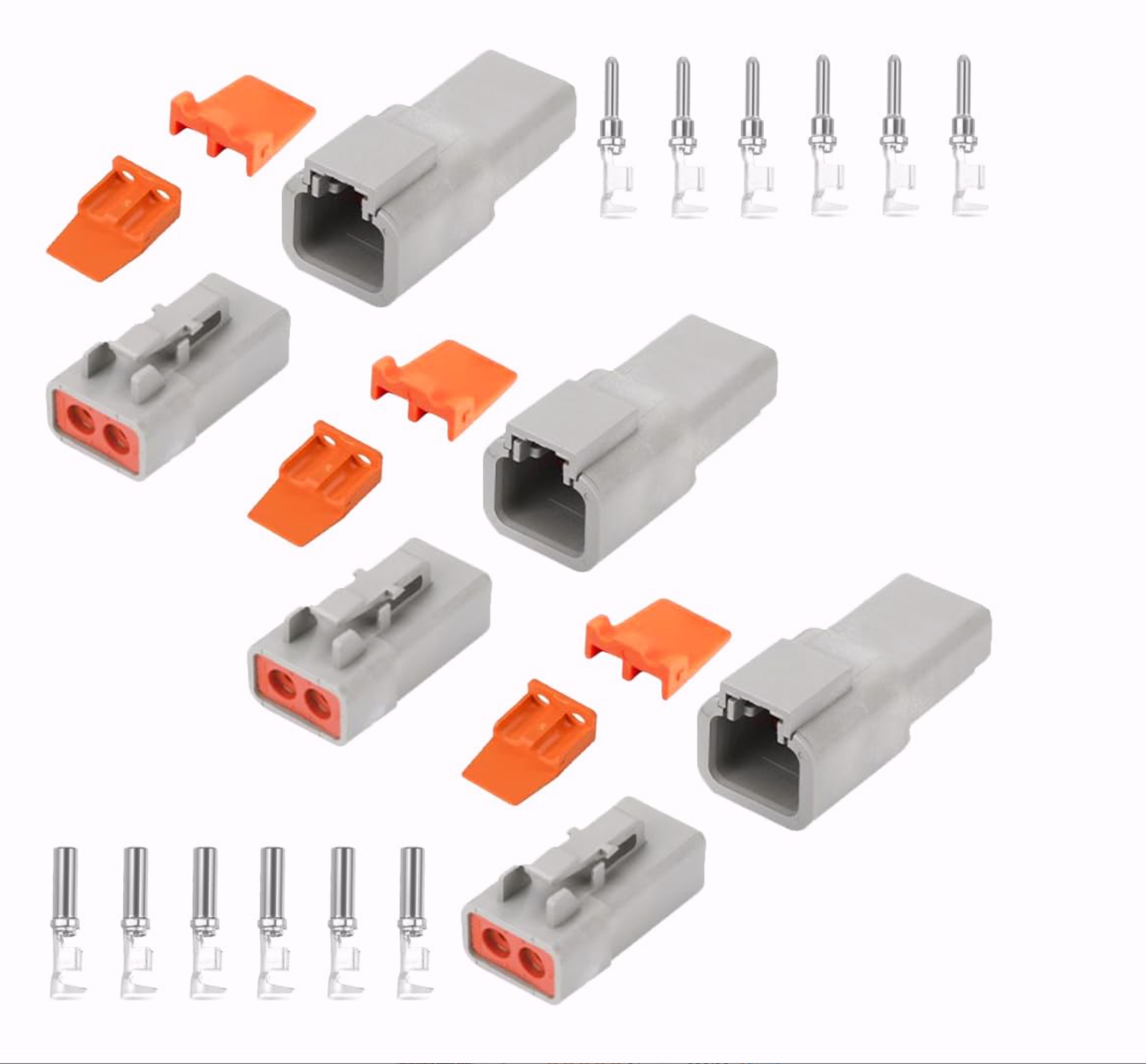

DTP Series Connector
DTP Series connectors are engineered for the most demanding environments. With enhanced mechanical strength and superior vibration resistance, these connectors excel in construction, agricultural, and heavy industrial applications.
Key Features
- Enhanced mechanical strength for extreme conditions
- Superior vibration and shock resistance
- Robust thermoplastic housing
- Positive locking with audible click
- Multiple mounting options available

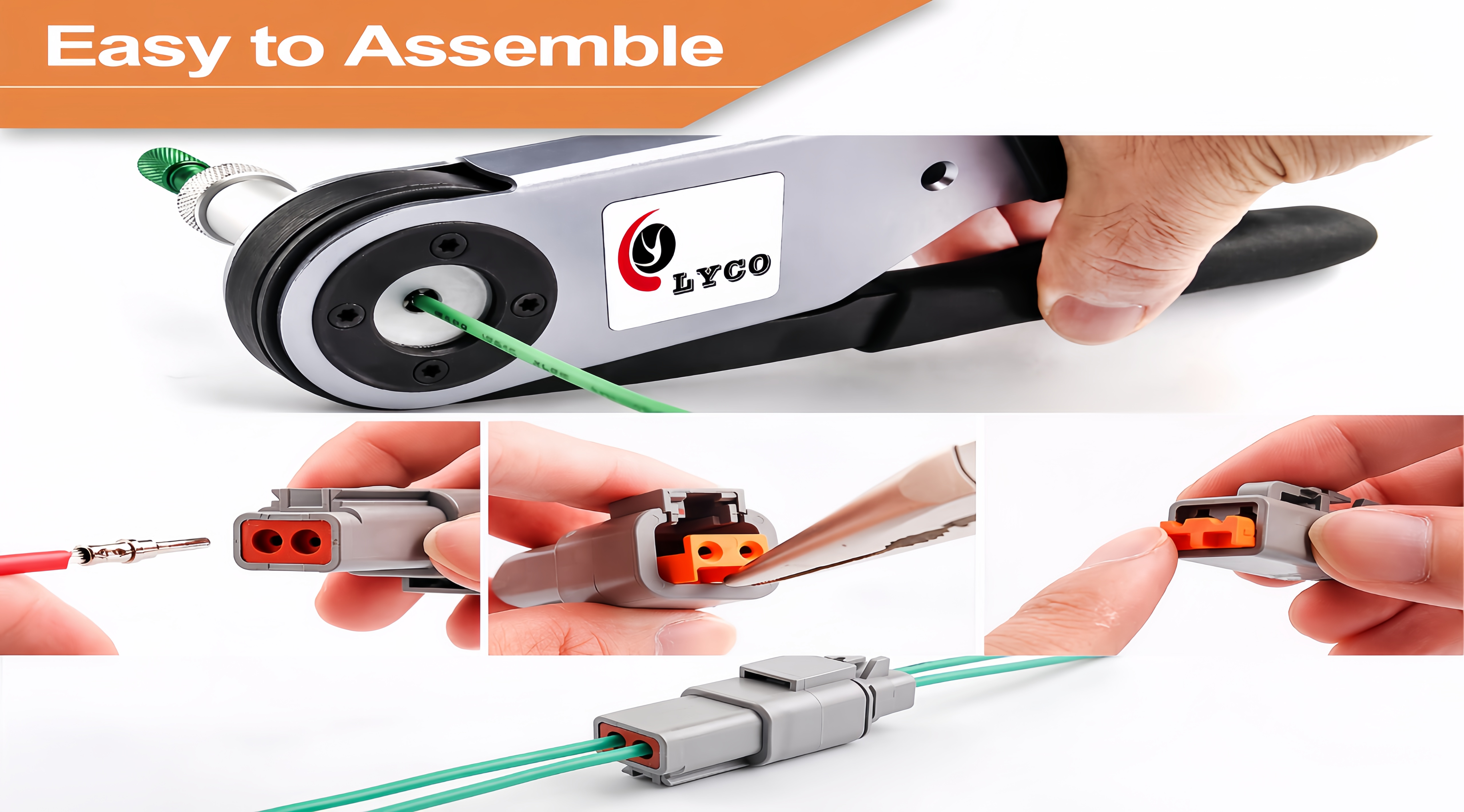

- Field repairable design
Specifications
| Positions | 2-12 positions |
| Current Rating | Up to 25A per contact |
| Voltage Rating | Up to 250V |
| Temperature Range | -55C to +125C |
| Environmental Rating | IP67/IP68/IP69K |
| Contact Size | Size 16 (1.0mm) |
| Wire Size | 14-20 AWG |
| Housing Material | High-strength thermoplastic |
| Seal Material | Silicone rubber |
Applications
Construction equipment
Agricultural machinery
Mining vehicles
Forestry equipment
Heavy-duty trucks
Rail and transit systems
Why Choose Our DTP Connectors
Maximum durability in harsh conditions
Extended service life
Reduced downtime and maintenance
Proven in extreme vibration environments
Inquire Now
Get a quote within 24 hours
