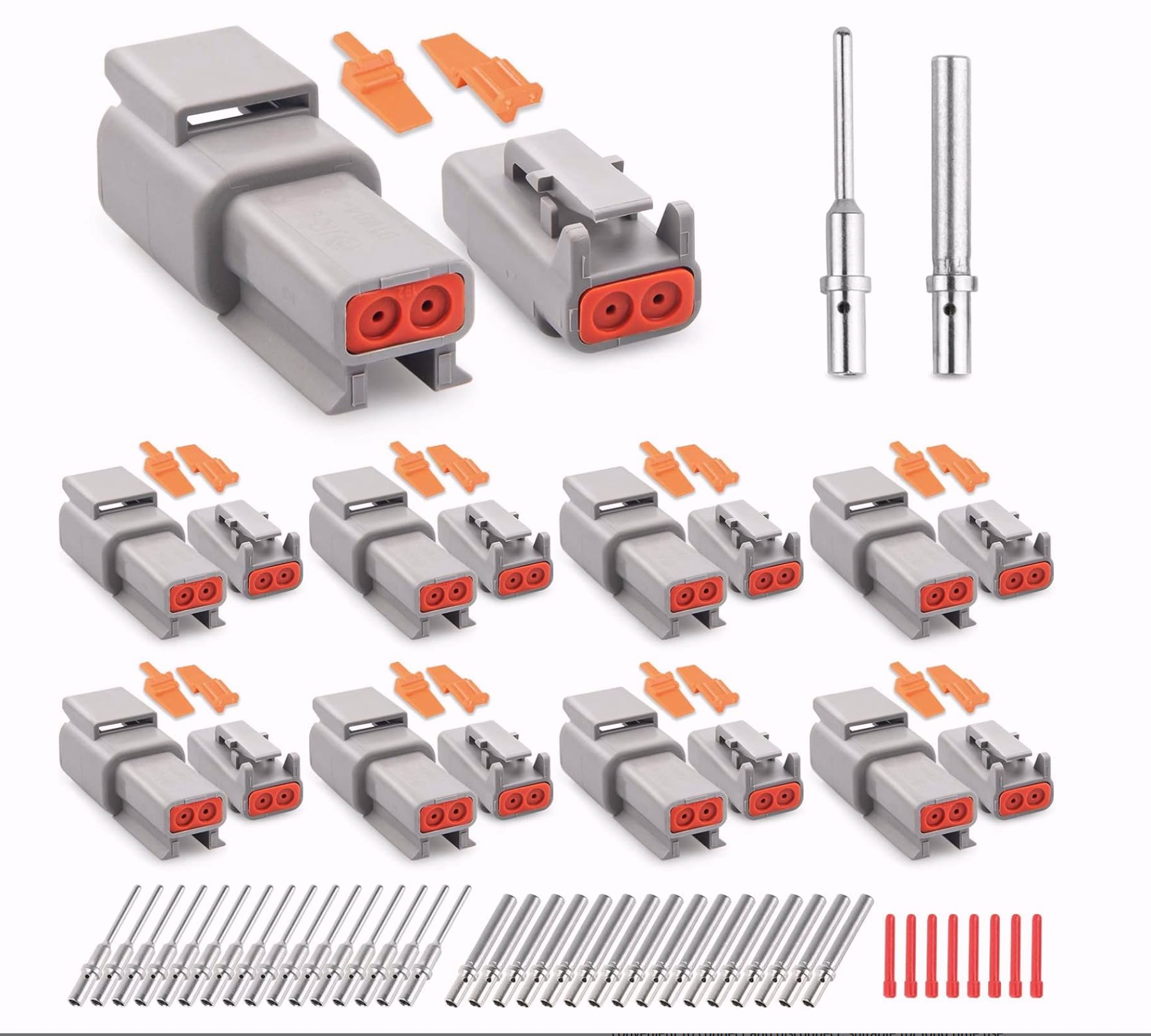

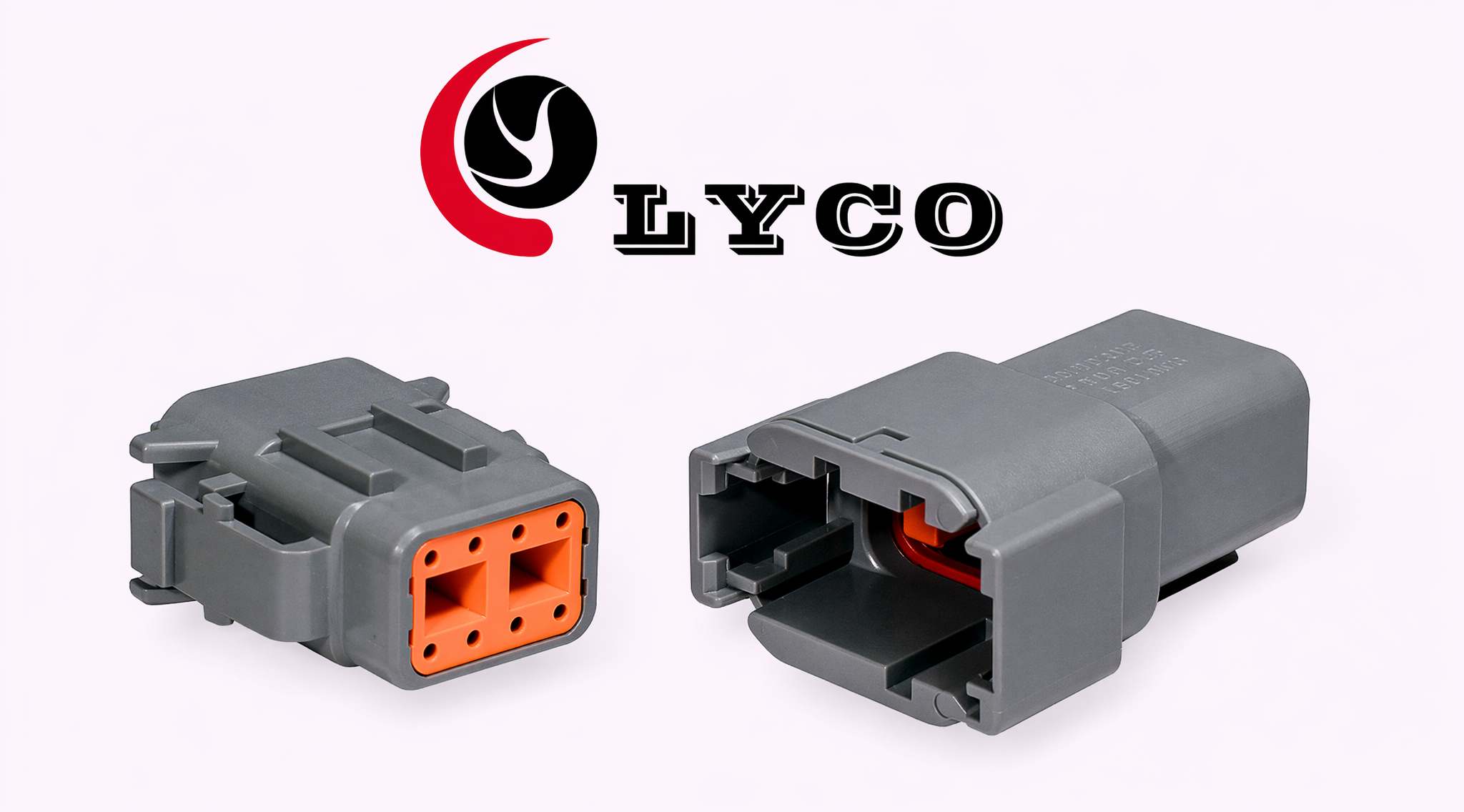

DTM Series Connector
DTM Series connectors deliver the same reliable performance as DT connectors in a more compact package. Ideal for applications with limited space requirements while maintaining full environmental protection.
Key Features
- Compact design saves 40% space vs standard DT
- Same environmental protection as DT series
- Lightweight construction
- High-density packaging capability
- Compatible tooling with DT series
- Color-coded housings for identification
Specifications
| Positions | 2-12 positions |
| Current Rating | Up to 7.5A per contact |
| Voltage Rating | Up to 250V |
| Temperature Range | -55C to +125C |
| Environmental Rating | IP67/IP68 |
| Contact Size | Size 20 (0.5mm) |
| Wire Size | 20-26 AWG |
| Housing Material | Thermoplastic |
| Seal Material | Silicone rubber |
Applications
Medical devices and instruments
Portable equipment
Sensor connections
Camera systems
Wearable technology
Compact control units
Why Choose Our DTM Connectors
Significant space and weight reduction
Maintains full DT series reliability
Ideal for high-density applications
Reduced material costs
