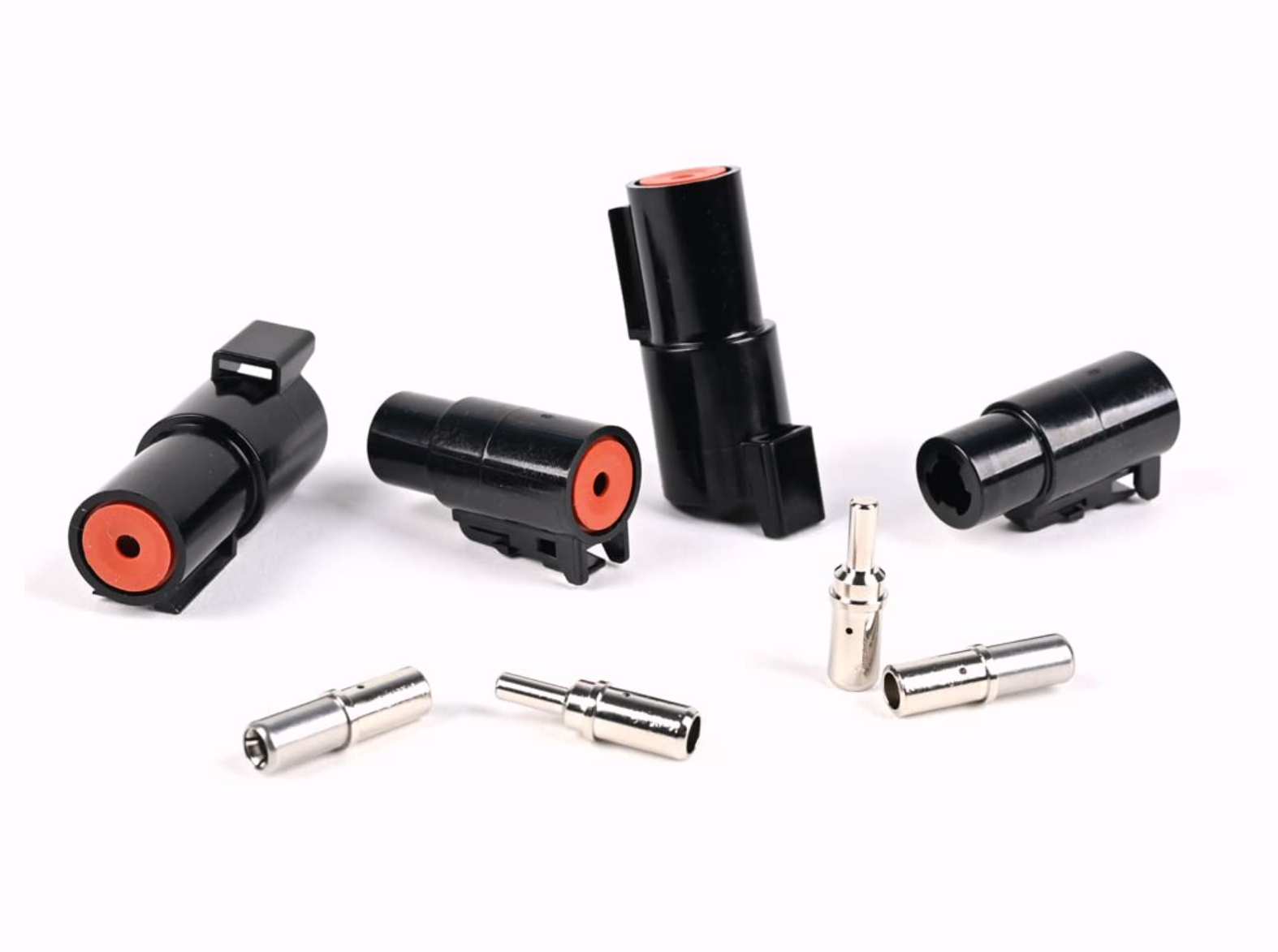

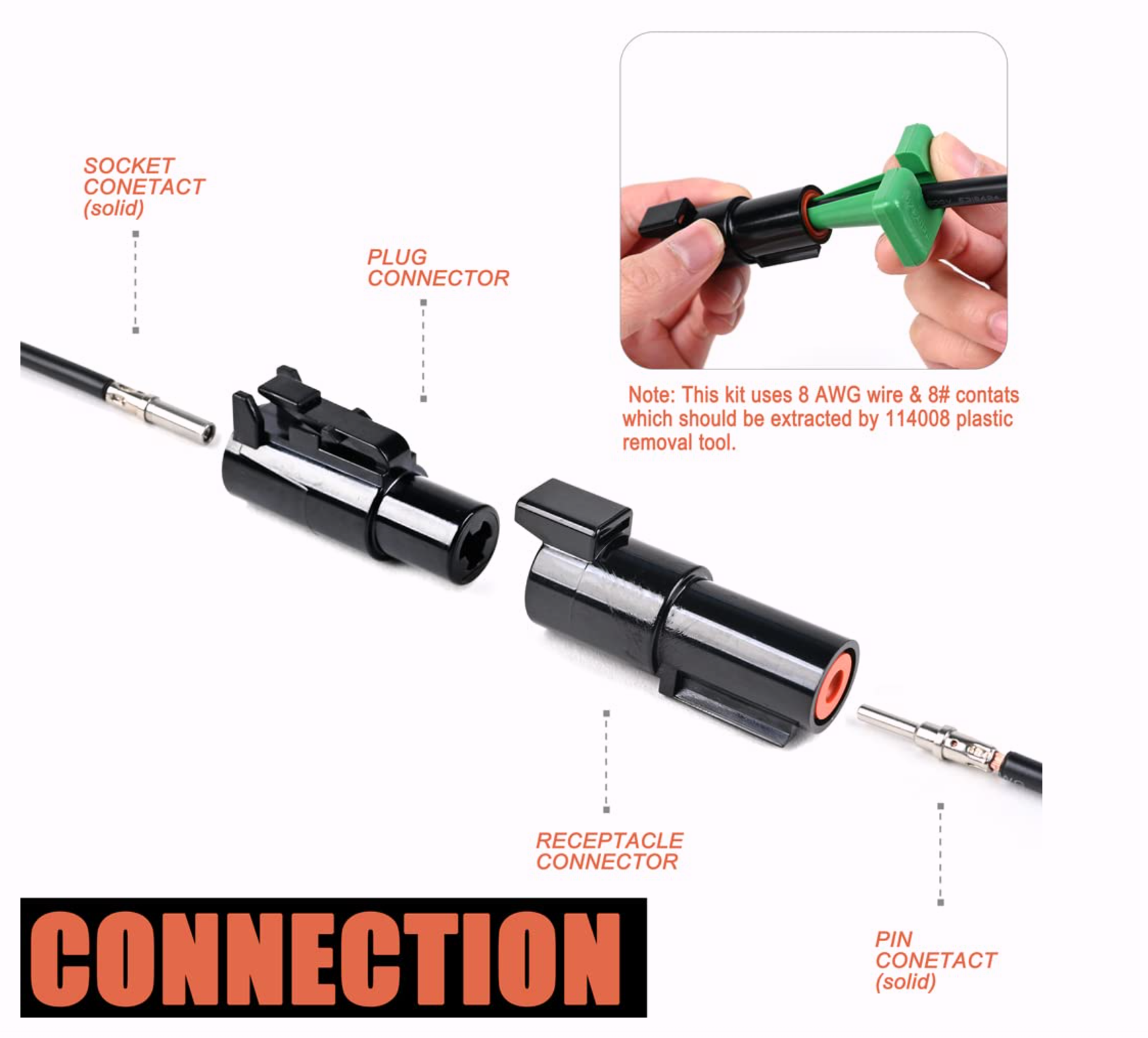

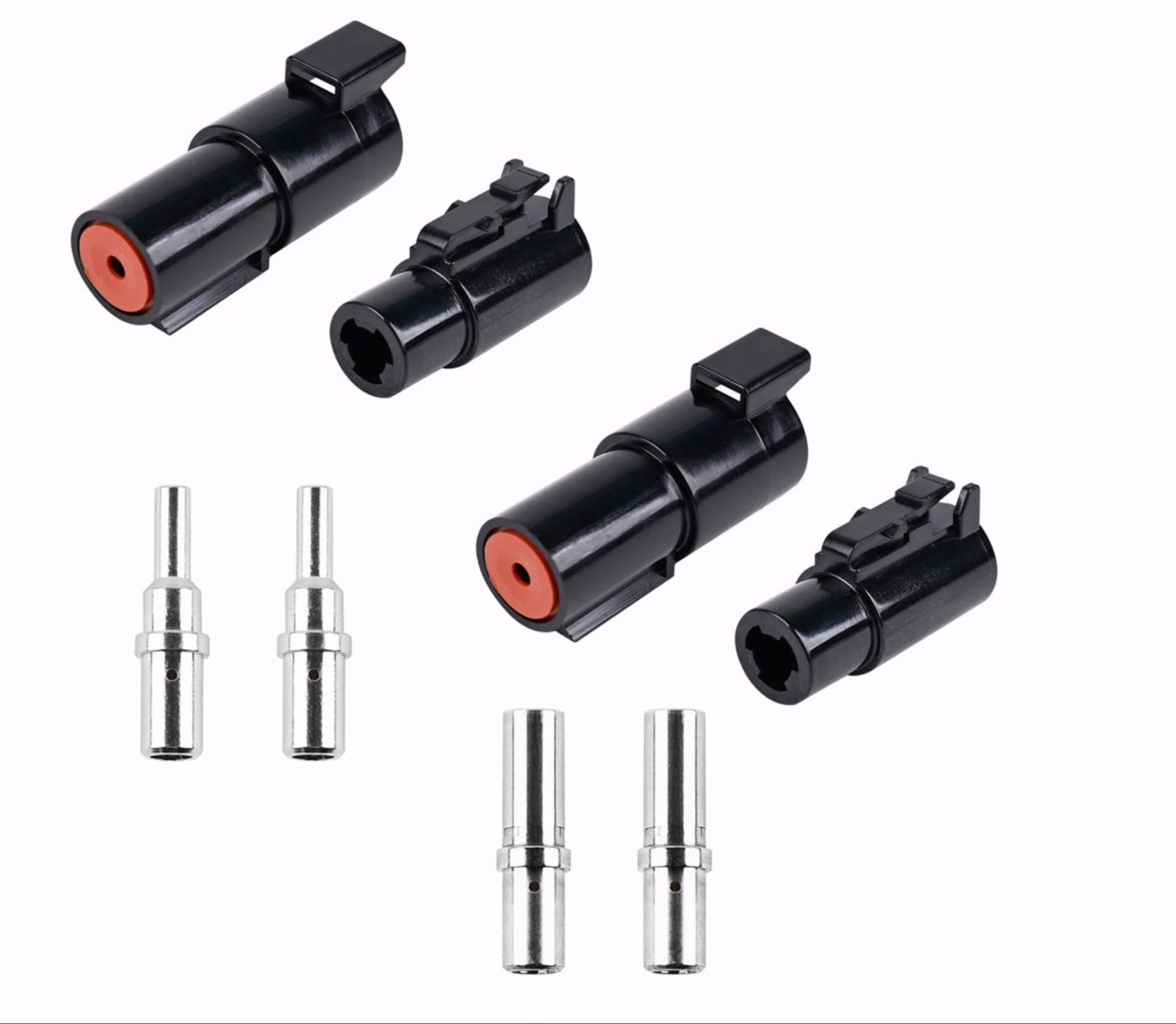

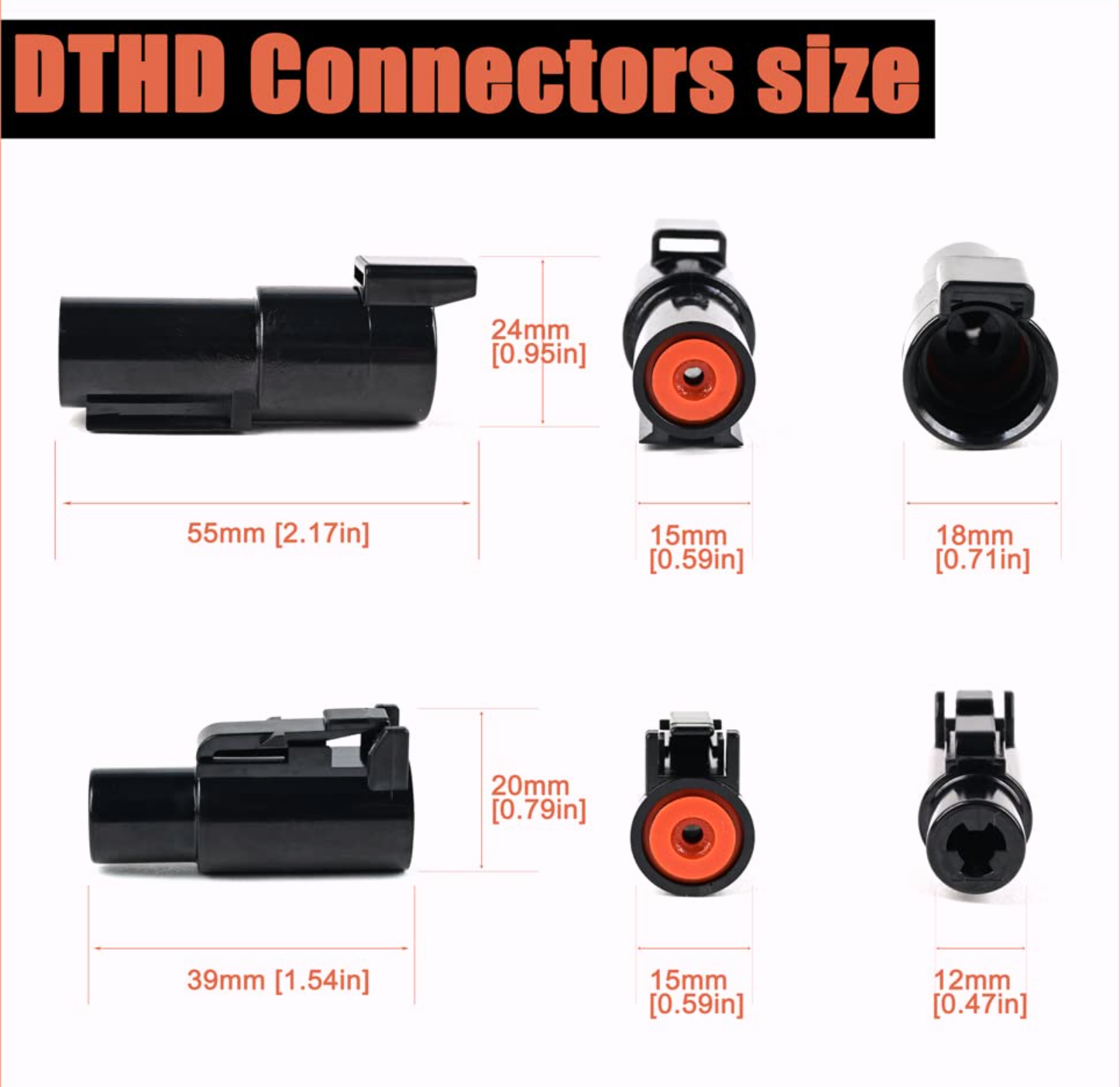

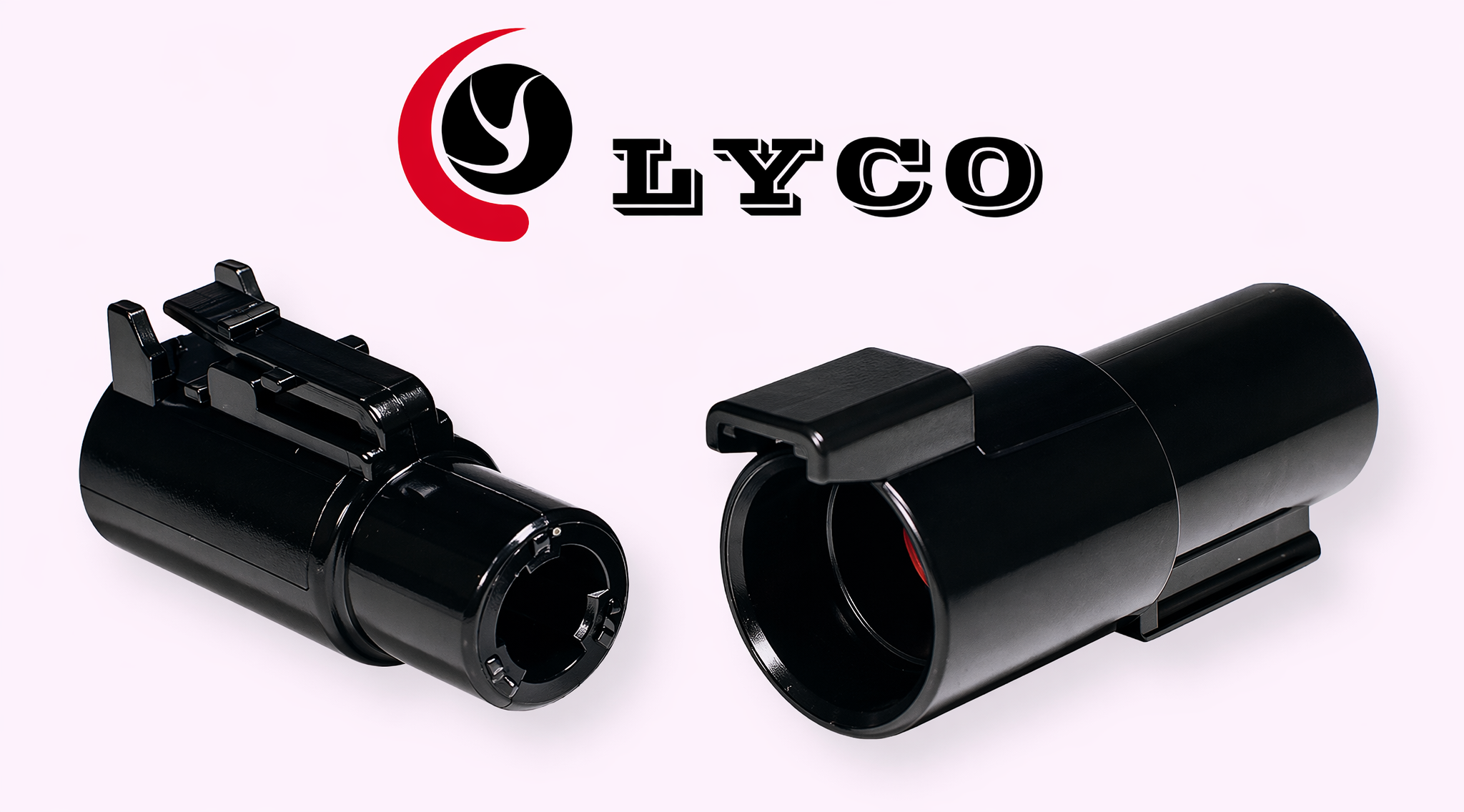

DTHD Series Connector
Our DTHD Series connectors maximize contact density while maintaining excellent signal integrity. Designed for applications requiring numerous connections in limited space, these high-density connectors deliver reliable performance in telecommunications, data systems, and complex control applications.
Key Features
- Maximum contact density in minimal space
- Excellent signal integrity and crosstalk prevention
- Compact lightweight design
- Multiple keying options
- Environmental sealing available
- Operating temperature: -55°C to +125°C
Specifications
| Positions | 1 positions |
| Current Rating | 45A |
| Voltage Rating | Up to 250V |
| Temperature Range | -55°C to +125°C |
| Environmental Rating | IP67 (sealed versions) |
| Contact Material | Copper alloy with gold plating |
| Housing Material | Thermoset, polycarbonate |
| Wire Size | 6-10 AWG |
Applications
Telecommunications equipment
Data transmission systems
Process control instrumentation
Medical diagnostic equipment
Avionics systems
Test and measurement gear
Why Choose Our DTHD Series
Space-saving high-density design
Reliable signal transmission
Reduced installation time
Cost-effective alternative
