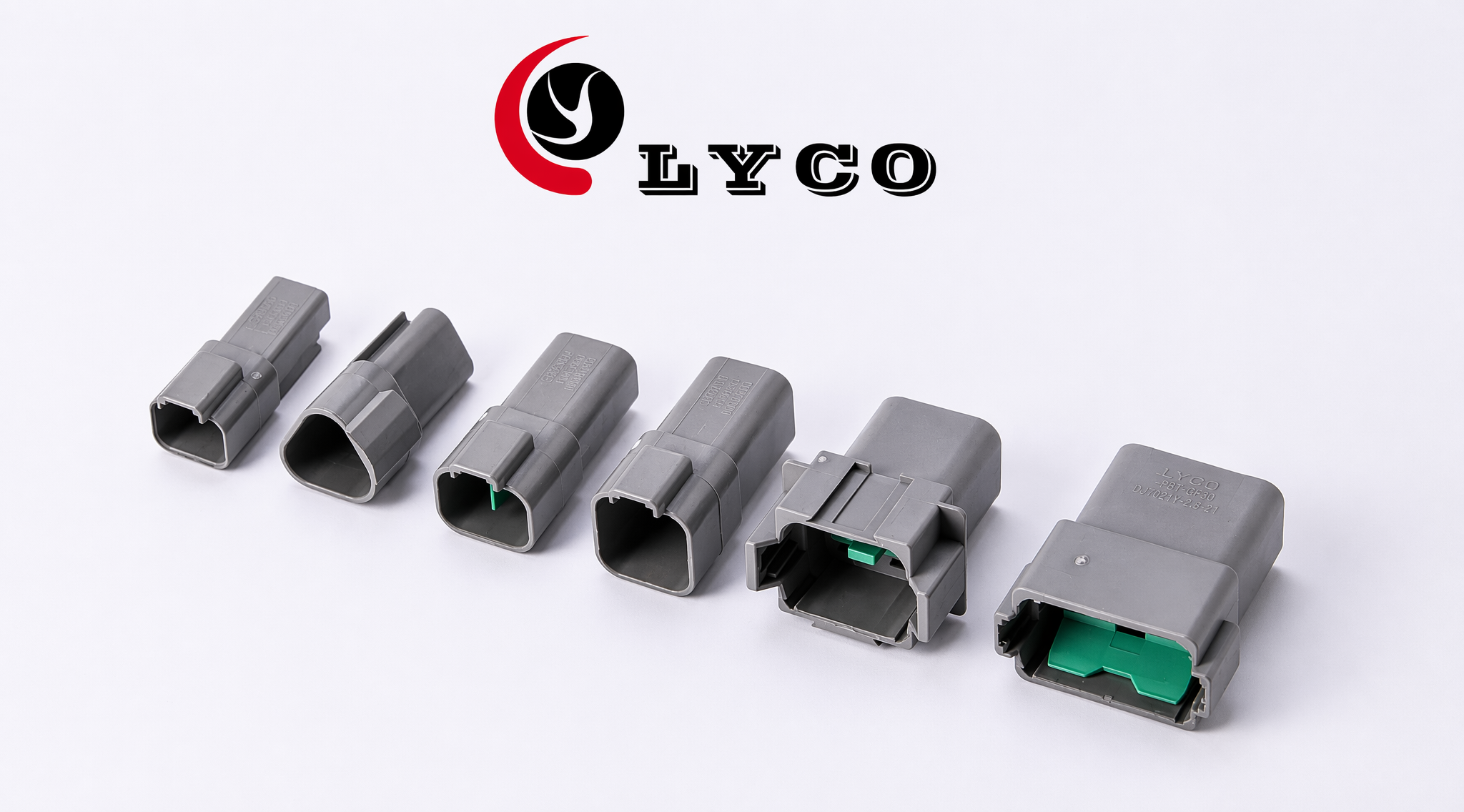

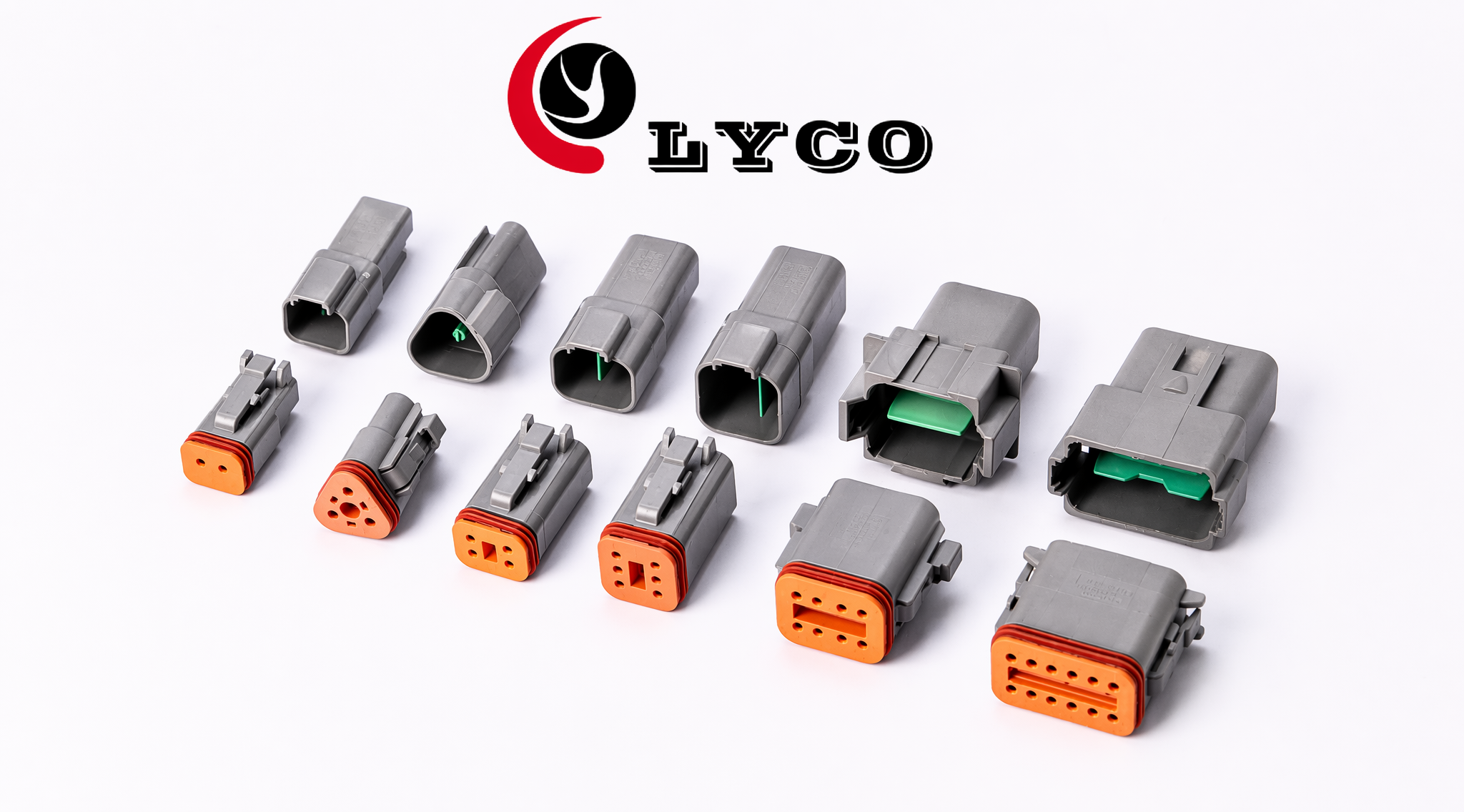

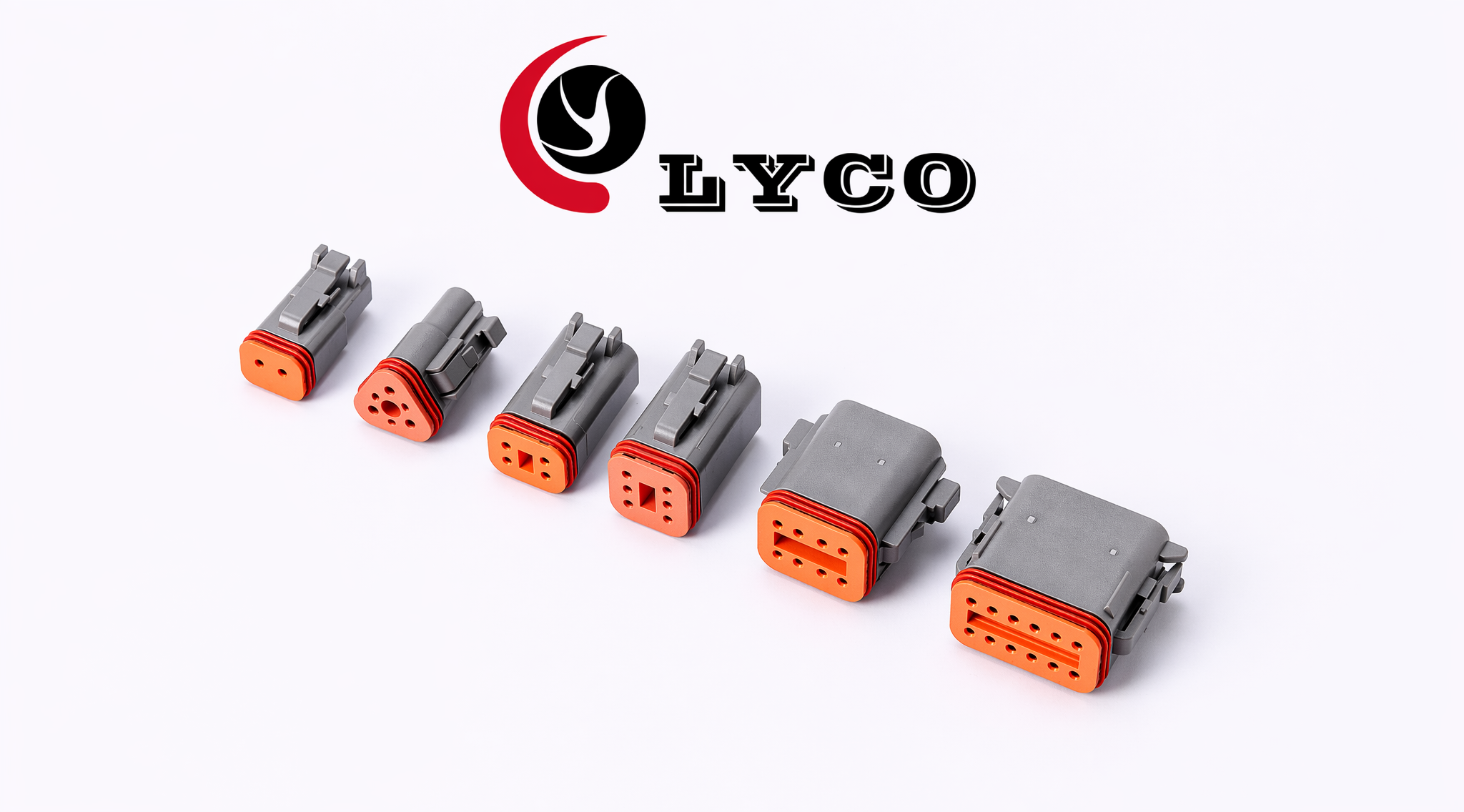

DT Series Connector
Our DT Series connectors provide reliable waterproof performance for general purpose applications. Featuring silicone rubber seals and precision-molded housings, these connectors deliver environmental protection in automotive and industrial wiring systems.
Key Features
- Silicone rubber seals for environmental protection
- Precision-molded thermoplastic housing

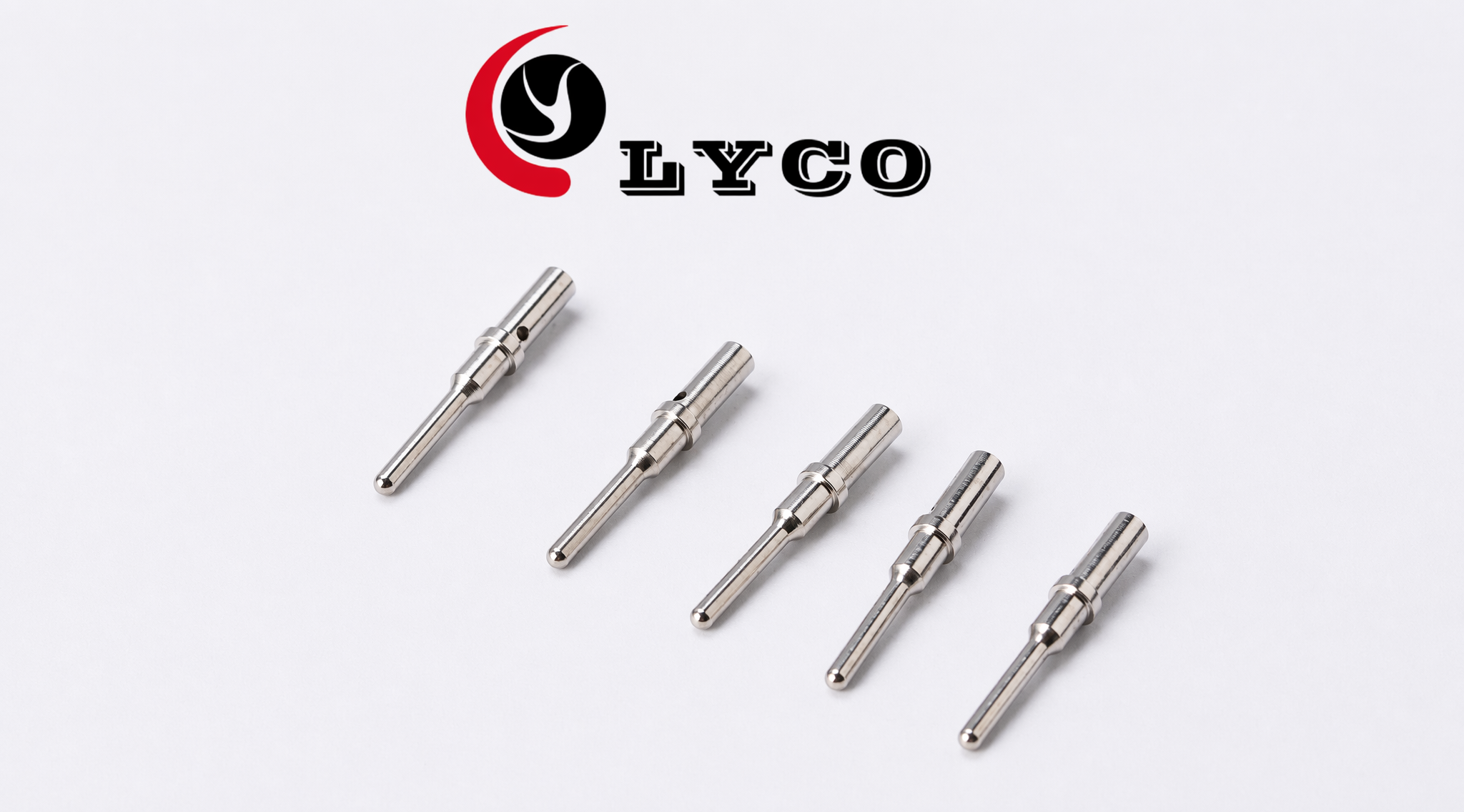

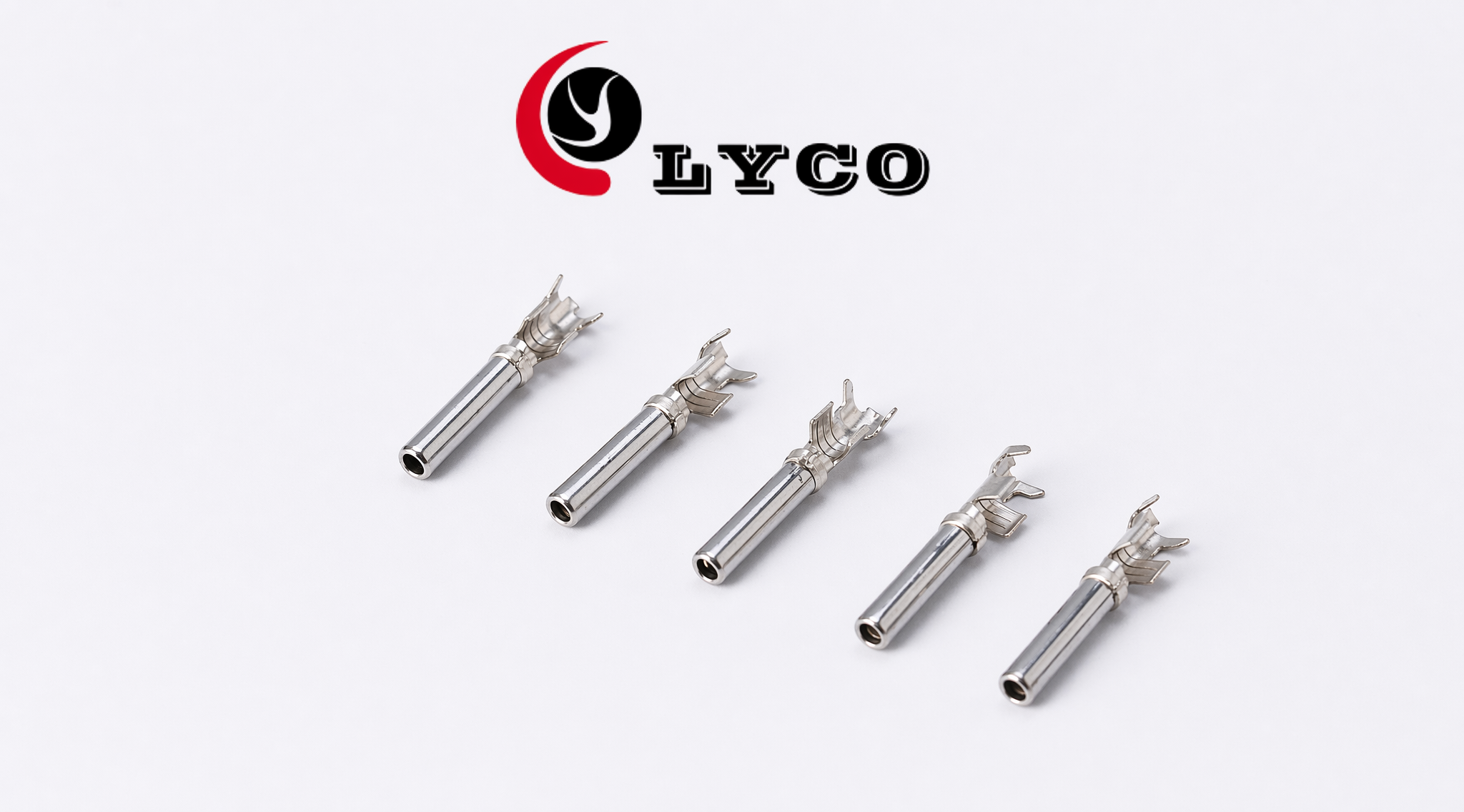

- Gold-plated copper alloy contacts
- Positive locking mechanism
- Keying options to prevent mismating
- Easy field assembly
Specifications
| Positions | 2-12 positions |
| Current Rating | Up to 13A per contact |
| Voltage Rating | Up to 250V |
| Temperature Range | -55C to +125C |
| Environmental Rating | IP67/IP68 |
| Contact Size | Size 16 (1.0mm) |
| Wire Size | 14-20 AWG |
| Housing Material | Thermoplastic |
| Seal Material | Silicone rubber |
Applications
Commercial vehicle wiring systems
Off-highway equipment
Marine electrical systems
Industrial control panels
Renewable energy systems
Transportation applications
Why Choose Our DT Connectors
Direct OEM replacement with 40-60% cost savings
Proven reliability in harsh environments
Wide availability of accessories
Easy to source and maintain
