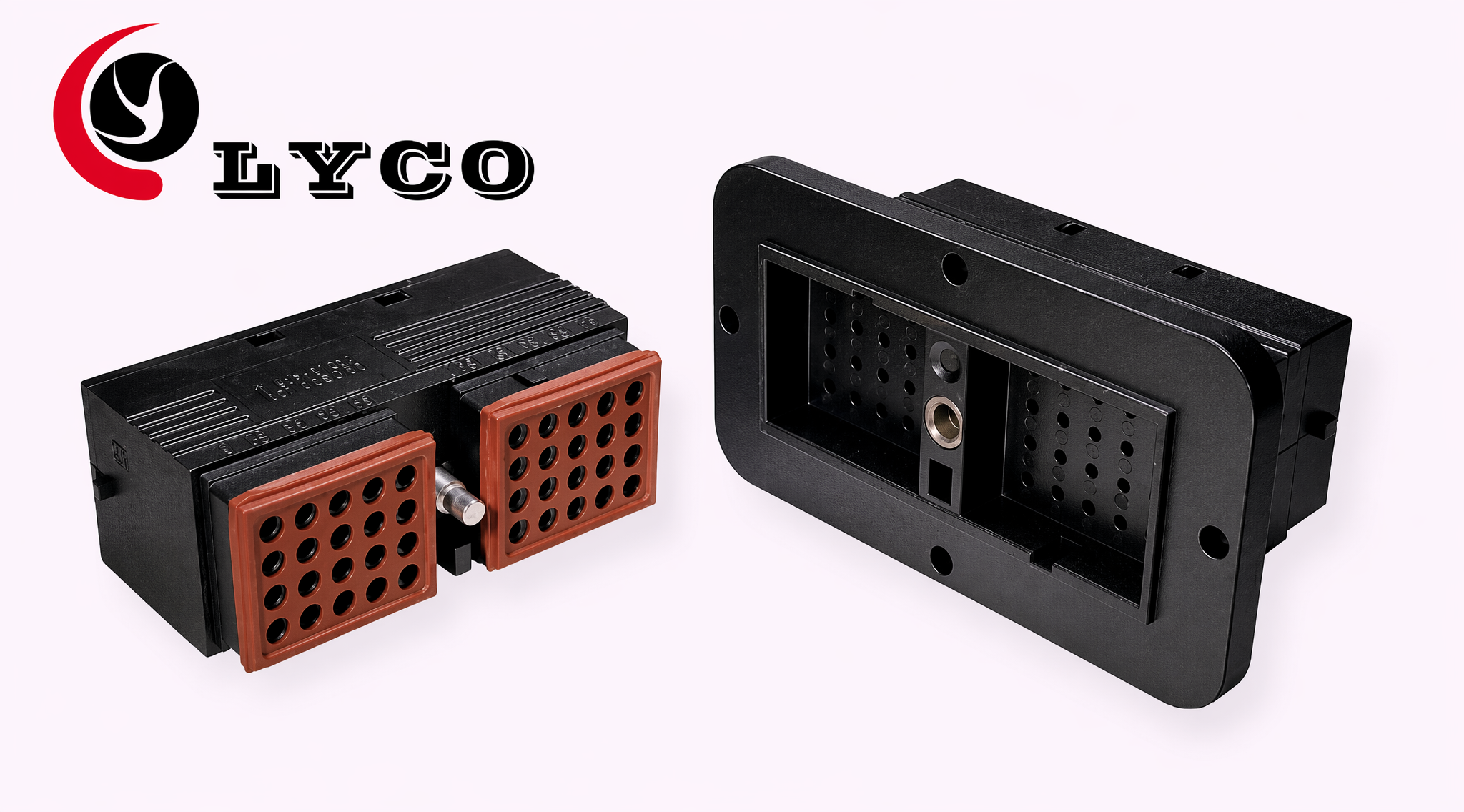

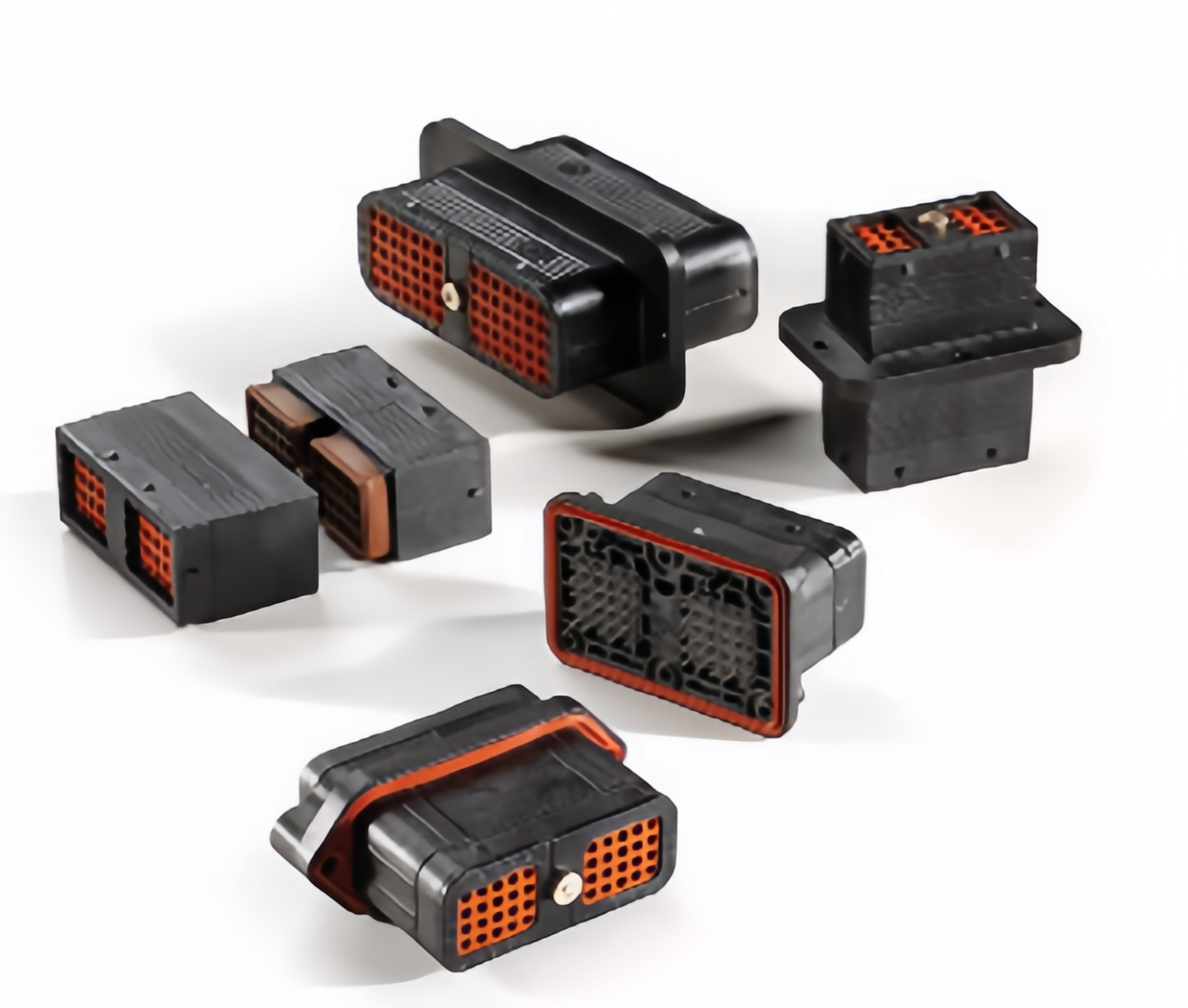

DRC Series Connector
Our DRC Series connectors combine rectangular housing design with durable metal shell construction for maximum protection in industrial environments. These heavy-duty connectors deliver reliable performance under extreme mechanical stress and harsh operating conditions.
Key Features
- Robust metal shell construction
- Heavy-duty rectangular design
- High current carrying capacity
- Excellent EMI/RFI shielding
- Secure locking mechanism
- Operating temperature: -55°C to +125°C
Specifications
| Positions | 24-80 positions |
| Current Rating | Up to 40A per contact |
| Voltage Rating | Up to 600V |
| Temperature Range | -55°C to +125°C |
| Environmental Rating | IP65/IP67 |
| Contact Material | Copper alloy with silver/gold plating |
| Housing Material | Zinc alloy, aluminum alloy |
| Wire Size | 12-24 AWG |
Applications
Industrial machinery controls
Factory automation systems
Power distribution equipment
Railway transportation systems
Mining equipment
Construction machinery
Why Choose Our DRC Series
Superior mechanical protection
Excellent electromagnetic shielding
Long service life in harsh conditions
Competitive pricing vs OEM
Inquire Now
Get a quote within 24 hours
