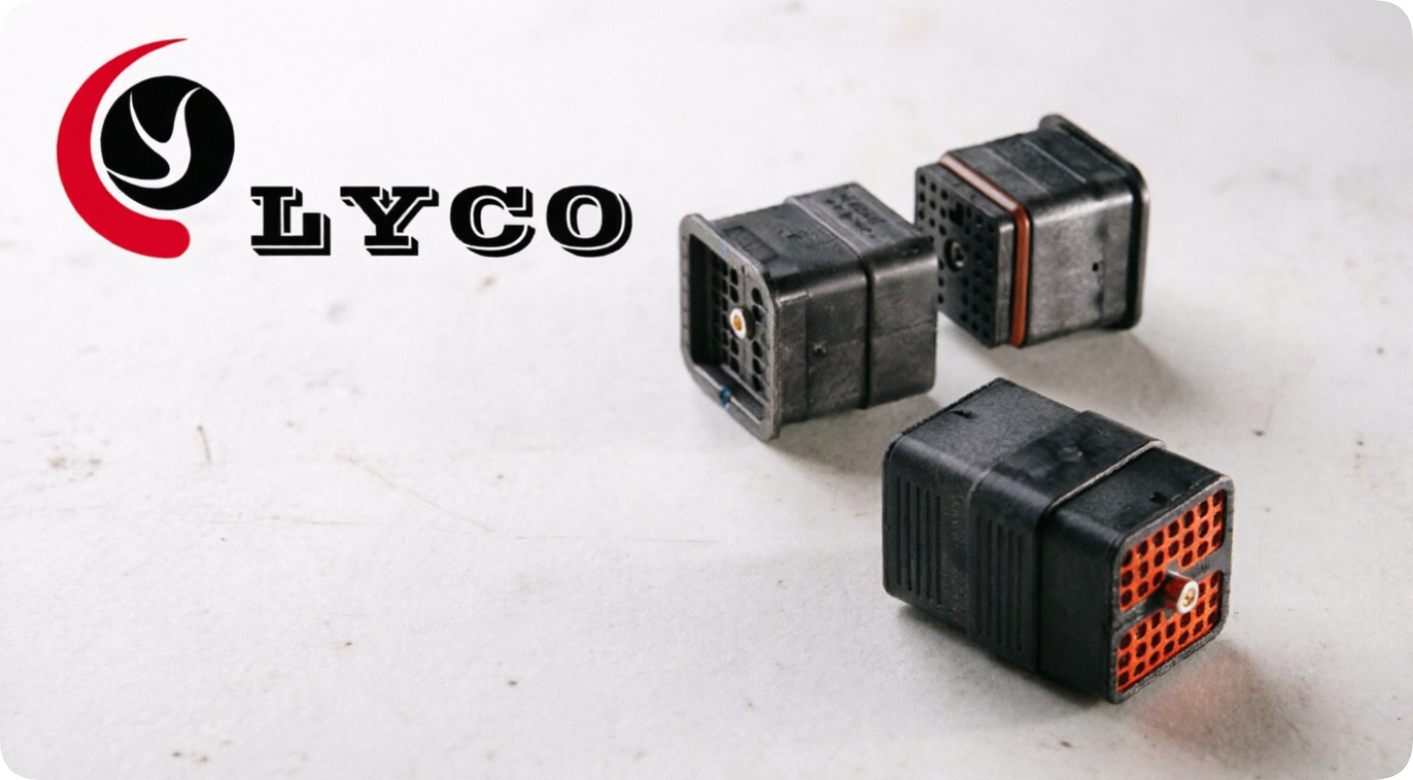

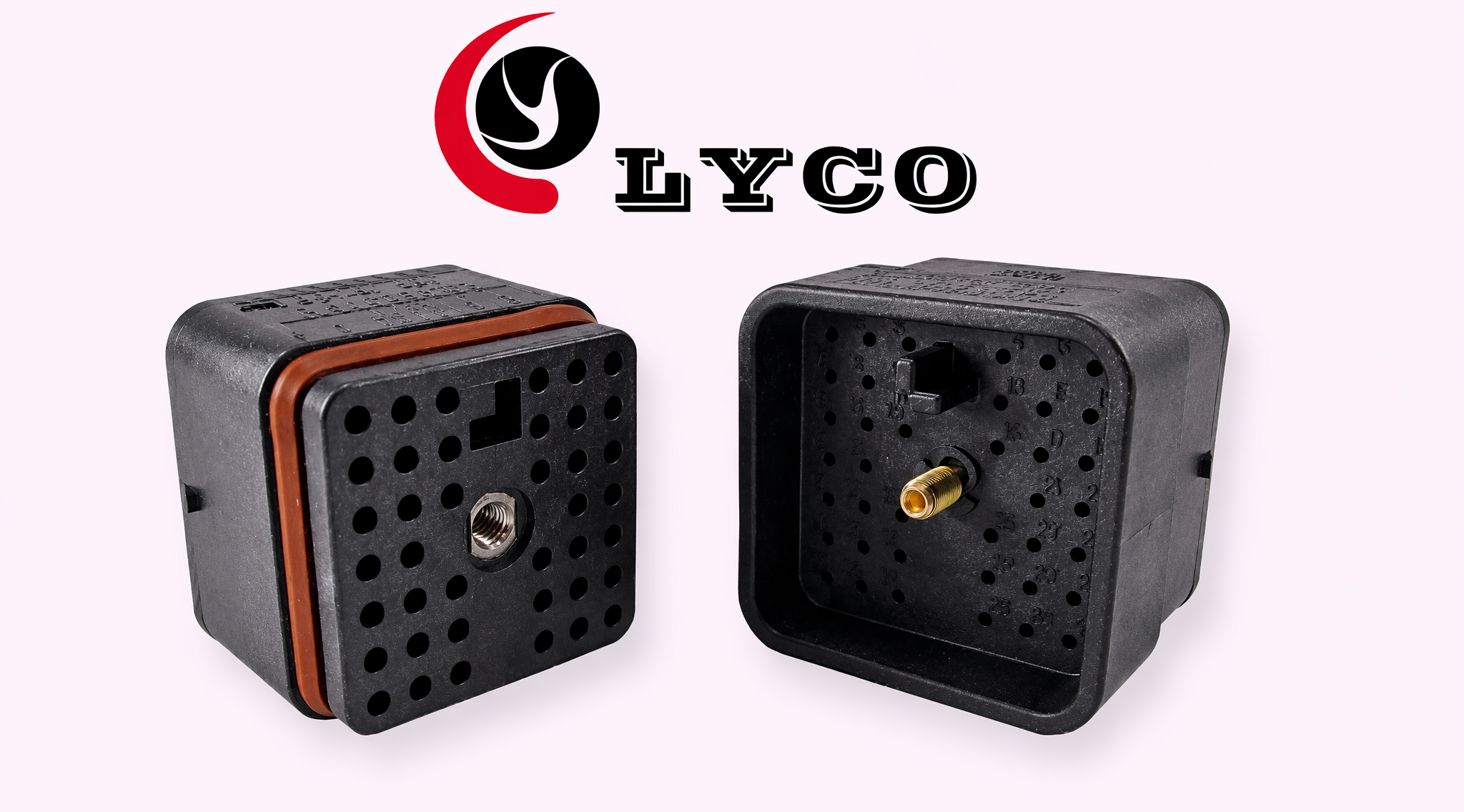

AEC Series Connector
Our AEC Series connectors are specifically designed for automotive applications where reliability under extreme conditions is critical. Featuring advanced sealing technology and robust construction, these connectors deliver consistent performance in high-vibration, high-temperature environments typical of modern vehicle electrical systems.
Key Features
- Designed for automotive harsh environments
- High temperature resistance up to +125°C
- Excellent vibration and shock performance
- IP67/IP68 environmental sealing
- Multiple keying options prevent mismating
- Compatible with standard automotive terminals
Specifications
| Positions | 2-64 positions |
| Current Rating | Up to 25A per contact |
| Voltage Rating | Up to 600V |
| Temperature Range | -55°C to +125°C |
| Environmental Rating | IP67/IP68 |
| Contact Material | Copper alloy with tin/gold plating |
| Housing Material | PA66 GF, PBT |
| Wire Size | 16-22 AWG |
Applications
Engine management systems
Transmission controls
Lighting systems
Sensor connections
Actuator controls
Power distribution modules
Why Choose Our AEC Series
Proven reliability in automotive applications
Reduced warranty claims through superior sealing
Cost-effective alternative to OEM brands
Fast delivery and technical support
